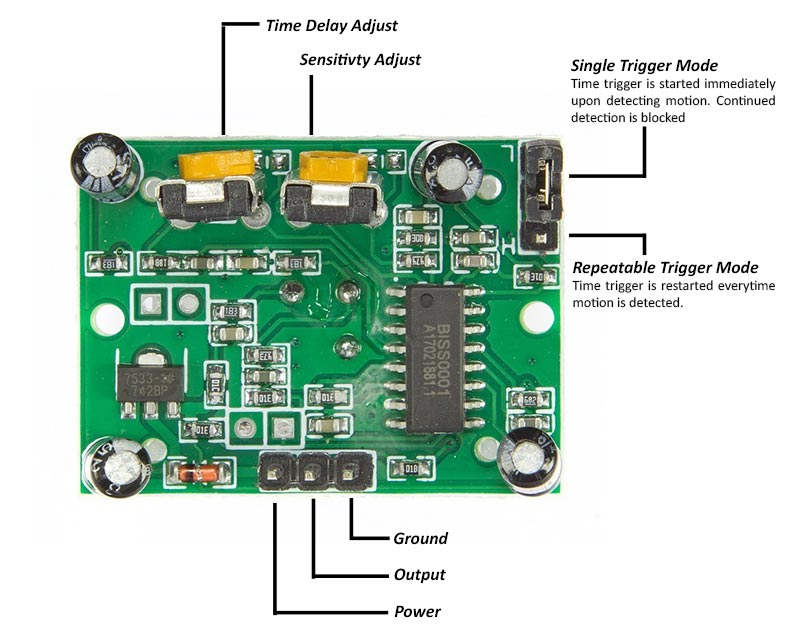

We have some PIR sensors from China with no identification markings. This makes it a bit difficult to find a datasheet for them. This labelled picture may be of use to those attempting to make use of them.
-
Development Boards
Useful information and links for Teensy, Bela, Arduino and ESP32
-
Lab Equipment Manuals
Lab Equipment Manuals and tutorials. Be aware that you may not be allowed to use all the listed equipment without the appropriate introduction course.
-
Out of the Lab
Projects that have made use of Manufakturet resources
-
Electronics Resources
Schematic drawing and simulation solutions etc
Chinese PIR Sensors

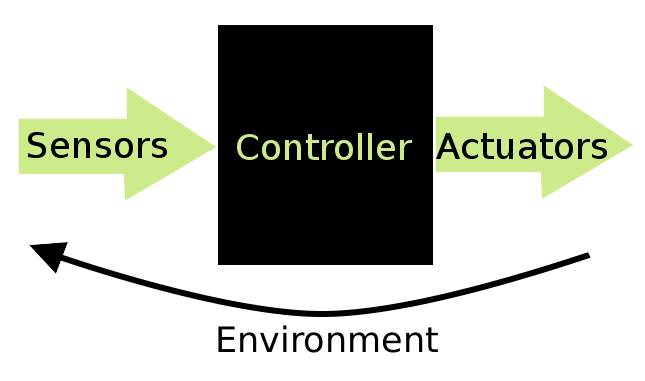

Sensors and Actuators
The accepted work flow with sensors and actuators is to look up the datasheet before doing anything else. Sometimes this is problematic, impossible or otherwise fruitless. We will be posting information here that might otherwise be ellusive.

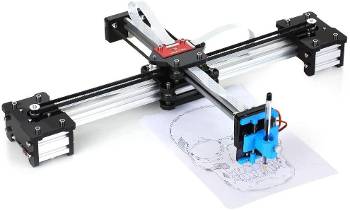

X-Y Plotter Documentation
In case you need an X-Y plotter to build your next project with, previous students have kindly supplied the documentation below.
For the design use we used this:
vigotec Installation Manual
Hardware:
manual
And some commands you could send to it:
for moving in x and y axis
userial.println("?$J=G91 Y" + NUMBEROFSTEPS + " F5000");
userial.println("?$J=G91 X" + NUMBEROFSTEPS + " F5000");
for reset
userial.println("?G0 X0 Y0");
all of this requires the USBHost_t36.h (A Teensy 3.6 was used for this project)
